Chiller Unit

Factory Tested
Air Cooled, No Cooling Tower
Hermatic Sealed Refrigeration Systems
Chilled Water Tank, Pump
Compressor : Hermatic or Open Type
Starter Panel, Controls, Digital Temperature Controller
Service Guarantee 12 months
Heavy Duty, Maintenance easy

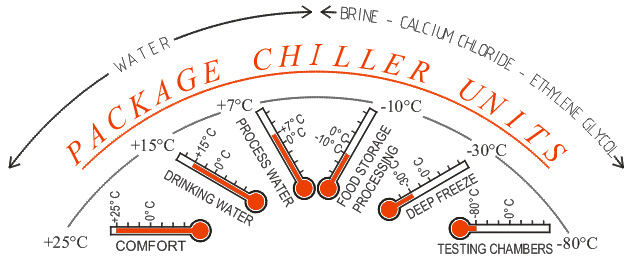

Applications:

Chemical factories,
Pharmaceuticals, Research & Development Test Laboratory,
Agricultural plants, Metallurgical industries, Hospitals, Food.

NOMINAL CAPACITY (TR) MODEL	2	3	4	5	7.5	10
NOMINAL CAPACITY (TR) MODEL	A0200HC	A0300HC	A0400HC	A0500HC	A0750HC	A1000HC
COMPRESSOR	RECIPROCATING HERMETIC
CONDENSOR COILS	COPPER TUBE ALUMINIUM FINS
CONDENSOR FAN CFM	1600	2400	4000	5000	7800	10000
CONDENSOR FAN SIZE (inches)	18	18	20	24	2 - 20	2 - 24
DX-CHILLER	COMPACT PLATE / HEAT EXCHANGER/ IMMERSION COIL
GPM / LPM	6-27	8-36	10-45	13-60	20-90	25-120
TANK LITRES	150	150	200	250	350	500
PUMP SIZE(mm)	19 x 19	19 x 19	32 x 25	32 x 25	32 x 25	40 x 40
POWER WATTS	2820 230V,1ph	4170 415V.3ph	5150 415V. 3ph	7250 415V. 3ph	10650 415V. 3ph	14450 415V 3ph
EXTERNAL DIMENSIONS(mm) L W H	800	1100	1300	1300	2400	2400
	800	900	900	900	900	900
	1500	1665	1915	1915	1800	1800

Continuous research results in steady improvements.Therefore, these specifications are subject to change without notice.

Compressor

Standard Hermatic Compressor R-22, Semi-Hermatic, open type optional.415 V,3ph ,50 Hz.

Evaporator Plate Compact Chiller

Stainless steel copper brazed heat exchanger is highly efficient, temp. + 7oC Chilled water, lower temp.-15oC available with Glycol.

Pumpset

Centrifugal monoblock water circulation through chiller, tank and external apparatus.

Electricals

Factory made and tested Electrical Board, Ammeter, Voltmeter, Indicating lamps, Switch fuse units, Contactors, overload protection, start stop push buttons,digital temp. indicating controller.

Air Cooled Condensor

Condensing coils 6 Rows Copper tube 3 / 8” OD aluminium 12 FPI, G I / AL end plate. Axial propellor Fan with motor 415V AC.Ambient 35OC - 40OC

Water Storage Tank

2 / 3mm thick MS welded with Top covers, inlet outlet makeup, drain, overflow connections, level indicator, Temp. indication , EPS insulation, Al cover, white cement plaster. Tank internal Zinc paint.(Optional Stainless steel tank.)

Accessories

Standard Copper Heat Exchanger, Accumulator, Receiver, Pressure gauge, HPLP cutouts, sturdy angle iron frame, water flow safety switch.Expansion Valve, copper piping.

Water Cooled option

Chiller Unit of larger capacities with water cooled shell and tube condensor can also be offered.
