The Package Type Airconditioning
Unit is designed and engineered
to suit requirement where 24 hours
continuous duty is required. All
components such as the Open - type
Compressor, Motors, Shell & Tube
Water cooled Condensor or Air
Cooled Condensor coil, Cooling coil
are mounted on channel and iron
frame work which is heavy duty
and has rugged construction. The
Casing is formed into shape to receive
Glass Wool Insulation. It has
proven its mettle at Steel Plants,
Hotels, Restaurants and Thermal
Power Plant.
Title
Detail
Compressor :
Open / Semi Sealed / Hermatic Optional.
Motors :
3 Phase AC squirrel cage motor, IP 55 , Ambient 50°C, Duty S1, 'F' Class of Insulation.
Condensor :
a) Water Cooled Shell & Tube Condensor (Integral finned, Copper tube expanded joint ends
pressure tested). b) Air Cooled Condensor (Copper tube, Header, Aluminium Fins) coil with Condensor motor
& fan blade.
Evaporator :
Dx type Cooling Coil with 4 / 6 rows deep copper tubes, 10-12 aluminium fins per inch, brass
distributor, copper header, end plate 16/14 g.
Air Blower :
Centrifugal Fan dynamically balanced and supported by pillow (silent) block bearings V-belt
driven by 3 phase TEFC motor.
Control Instrument :
Control HP & LP cutouts, OP, Water Flow Cutout Switch, Gas Solenoid Valve, Expansion
Valve, Thermostat, Pressure Gauges.
Frame Work Casing :
M.S. Angle & Channel Base Frame, MS/GI insulated double skin removable panels.
Continuous research results in steady improvements. Therefore, these specification are subject to change without notice.

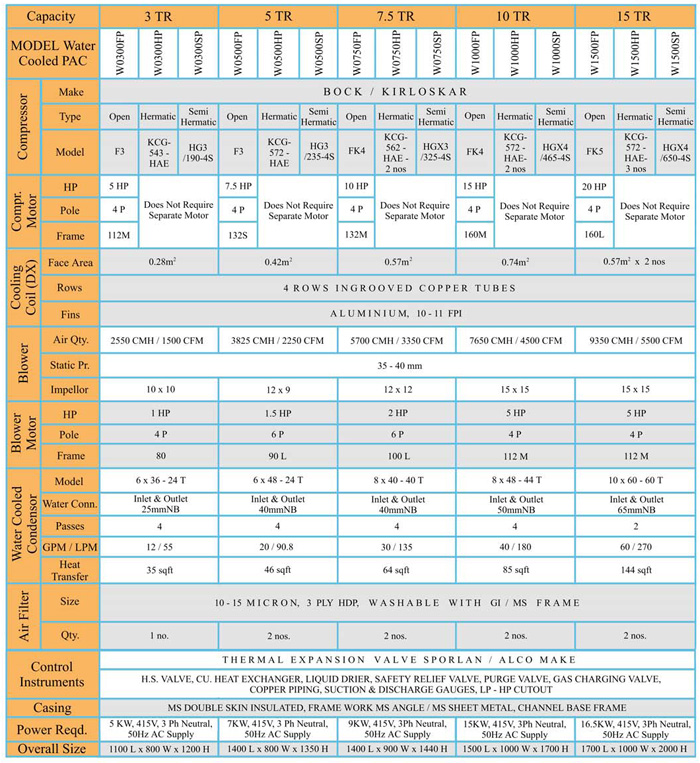

Specification shown above is of Package Type Water Cooled Air Conditioner with Open type Compressors.
